Trailer Size:12500*2500*1500
Color:Customizable
Introduction

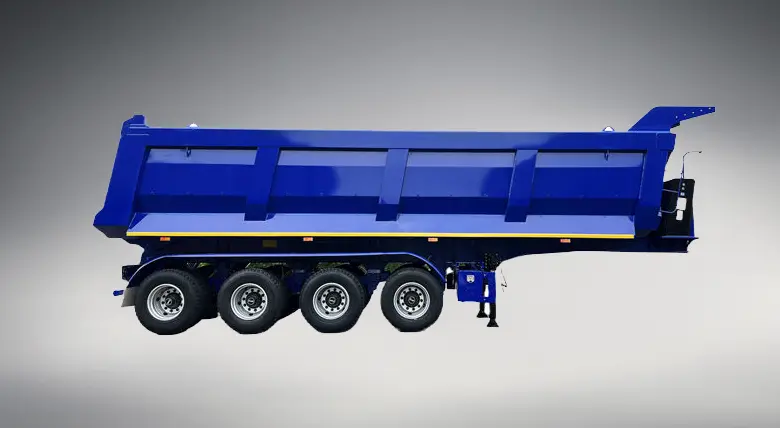

| SINOTRUK REAR FLIP BOX DUMP SEMI TRAILER | |
| Size | 9968mm*2500mm*3566mm |
| Payload | 30-80T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. |
| Top flange 18mm,width140mm;Middle Flange 14mm height 500mm;bottom flange20mm,width 140mm | |
| Floor | 8mm checkered plate （Optional） |
| Side wall | Height 1600mm thickness 6mm （Optional） |
| Cylinder | HYVA （Optional） |
| Axle | 3 axle FUWA brand 13T （Optional） |
| Suspension | Mechanical suspension American type （Optional） |
| Leaf spring | Leaf spring 10pcs*90*13mm （Optional） |
| Tire | 12R22.5 12pcs （Brand and specs optional） |
| Wheel rim | 9.0-22.5 12pcs （Brand and specs optional） |
| Kingpin | 2”/3.5” bolt-in /welded king pin |
| Landing gear | Two-speed, manual operating ,heavy duty landing gear 28T |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Products real shot
