Trailer Size:12500*2500*1500
Color:Customizable
Introduction

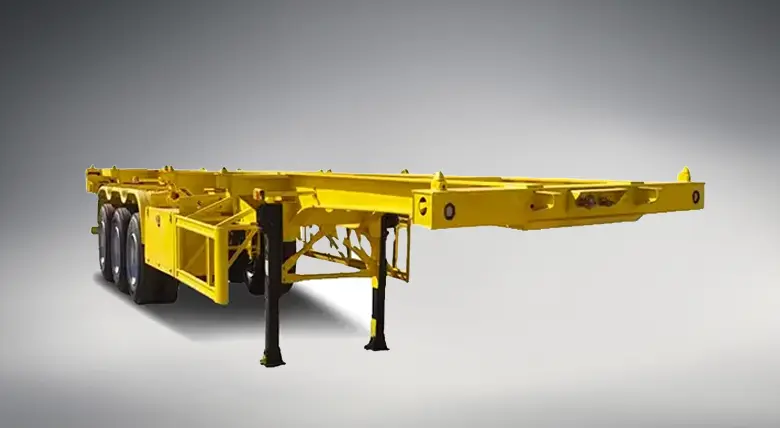

| SINOTRUK 3 AXLE CONTAINER SKELETON SEMI TRAILER | |
| Dimensions (LxWxH) | 12400*18000*2500-3200*1500*1550mm |
| Tare Weight | 8000kg–14000kg |
| Loading Capacity | 40T |
| Axle Weight Load | 13T |
| Axle number | 3 |
| Axle Brand | Fuwa/BPW/Optional upon choice |
| Suspension | Common mechanical Or Air suspension |
| King Pin | 2″ or 3.5″ traction pin |
| Support legs | 28T |
| Wheel Rim | 8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim/optional upon choice |
| Wheelbase | 7180/6680/6260+1310+1310mm |
| Steel Spring | 10-13 pieces per axle |
| Twist lock | 12 sets of ISO twist lock for 1*20ft,2*20ft,1*40ft container |
| Landing Gear | Manual operating, Heavy duty landing gear (Brand Optional upon chioce) |
| Floor | 3-5 Diamond steel plate |
| Accessories | 1 Set standard tool box |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| Painting | 1coat of anticorrosive prime, twice coats of final paint |
