Trailer Size:12500*2500*1500
Color:Customizable

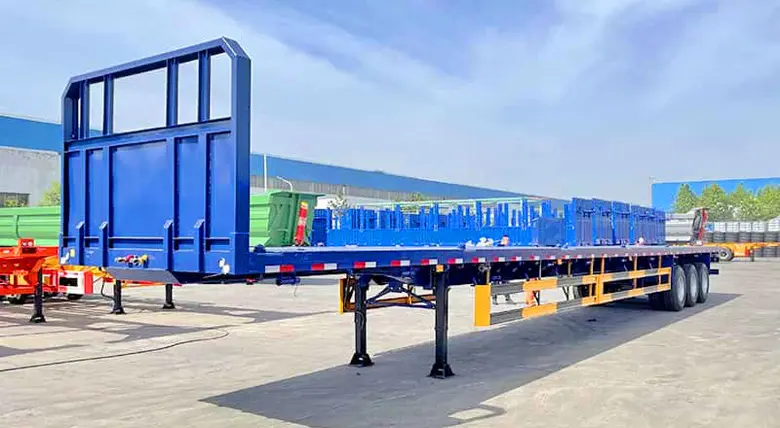

Sinotruk Howo Flatbed 60 Tons Semi Trailer is a heavy-duty vehicle designed for transporting large and heavy goods. It features a flatbed design, which allows for easy loading and unloading of cargo. The trailer has a maximum weight capacity of 60 tons, making it suitable for hauling heavy machinery, construction equipment, and other oversized items.
The Sinotruk Howo Flatbed 60 Tons Semi Trailer is equipped with advanced safety features to ensure the safe transportation of goods. These include air brakes, ABS (Anti-lock Braking System), and a rear underride guard to prevent runaway vehicles from colliding with other road users. The trailer also has a high-quality suspension system that provides a smooth ride, even when carrying heavy loads.

| Sinotruk Howo Flatbed 60 Tons Semi Trailer | |
| Dimension | 12500 x 2500 x 1620mm |
| Curb Weight | 7.5Tons |
| Loading Capacity | 60 Tons |
| Twist Lock | 12sets, suitable to accept 1×20,2×20,1×40 container; Manual operation |
| Platform | 3mm thick checkered plate |
| Kingpin | JOST 2.0 / 3.5 Inch |
| Landing Gear | JOST 28 Tons |
| Main Beam | Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
| Side Beam | 16mm steel channel |
| Suspension | America type mechanical suspension |
| Spring Leaf | 90mm x 13mm x 10 layers |
| Axles | FUWA Brand, 13Tons |
| Tires | 12.00R20 or 315/80R22.5 |
| Brake Chamber | T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
| Electrical | 24V |
| Tool Box | 1000 x 500 x 500 mm |
