Trailer Size:12500*2500*1500
Color:Customizable
Introduction
| SINOTRUK HOWO CRUDE OIL TANK TRAILER | |
| Trailer Model | 30000l-55000l Crude Oil Tank Trailer |
| Overall Dimension(Lx W x H)(mm) | 12500x2500x3900mm |
| Function | Transport Fuel, Oil, Diesel |
| Material | Tank body: Carbon steel / Aluminum / Stainless |
| Loading Weight( KG) | 40000 |
| Axle Brand | FUWA Brand 13Ton Axle |
| Axle Number | Three |
| Compartment | 3 compartments 15000/15000/20000L |
| Manhole cover | 500mm manhole cover. 3 sets with 3 breath valve. |
| Discharge valve | 4″disc valve |
| Discharge pipe | 4″seamless steel tube |
| Bottom valve quantity | 3 units |
| Suspension | Leaf spring suspension |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
| The material of Main beam | The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm. Material is Q345B Steel |
| Tire Type and quantity | 12R22.5 12units Triangle brand |
| Traction Pin | 50mm (optional 90mm) |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | Standard brand 28ton external |

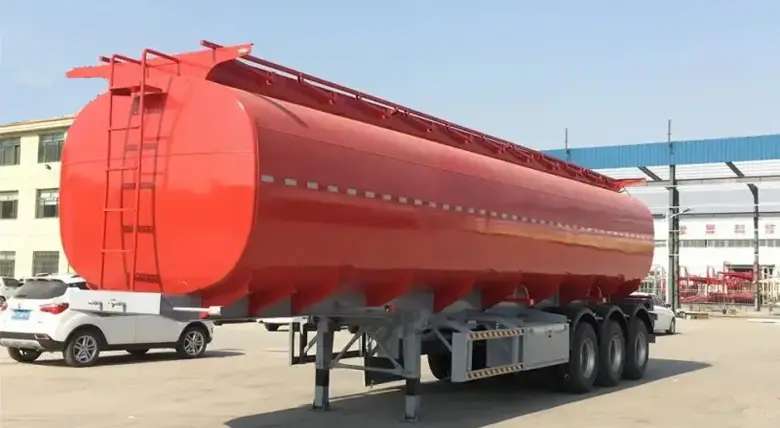

Products real shot
