Trailer Size:12500*2500*1500
Color:Customizable
Introduction
| SINOTRUK HOWO CARGO SIDE WALL SEMI TRAILER | |
| Function | 2×20 ft container or 1x40ft container or others goods |
| Overall dimensios | 12500x2500x1600 mm |
| Loading weight | 60,000 kg |
| Side guard | 600mm height |
| Container twist lock | 12 pcs |
| Main beam | Q345B steel |
| The height of the beam is 50mm, upper plate is 14mm,down plate is 16mm, middle plate is 8mm | |
| Side beam | 16 U shaped steel or I shaped steel |
| Chassis | |
| Axle brand | 13 ton FUWA Brand axle |
| Axle number | 3 |
| Landing gear | Standard 28 ton, JOST etc optional |
| Suspension system | Mechanical suspension |
| Steel spring | 2010/10/10 |
| Tire | 1100R20 radial tire |
| Tire quantity | 12 |
| Frame | |
| Platform thickness | 3 mm diamond plate |
| Accessories | |
| Brake | 6 big chamber brake system, without ABS |
| Tool box | 1 unit |
| Spare wheel carrier | 2 units |
| Side marker lamp | LED type |
| Voltage | 24V |
| Receptacle | 7 ways |

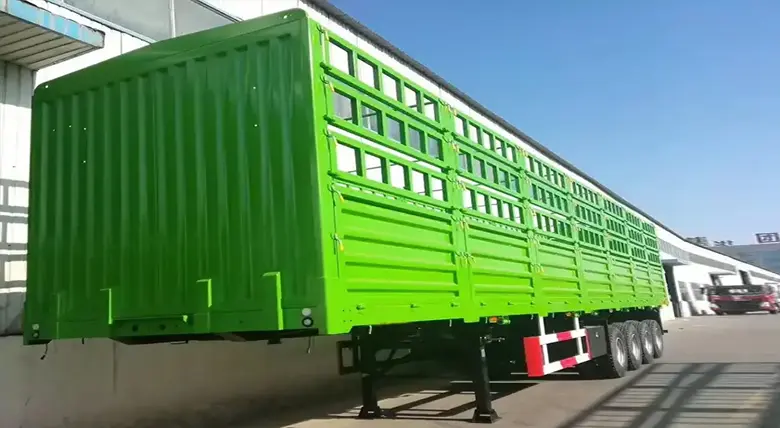

Products real shot
