Trailer Size:12500*2500*1500
Color:Customizable
Introduction
| SINOTRUK HOWO 4 AXLE DUMP TRAILER TRUCK | |
| Dimension(L*W*H) | 10500*2650*3700 (mm) (Customized Sizes or Designed according to customers’ needs) |
| Thickness | Side wall:8 mm; bottom floor:10 mm |
| Payload (Kg) | 40000 to 100000 |
| Volume (CBM) | 20 to 50 CBM |
| Hydraulic system | HYVA Brand |
| Kingpin | JOST 3.5″/2.5″ bolt-in type |
| Landing gear | JOST 19″ |
| Tires | 11R22.5 /12R22.5/11.00R20/12.00R20 |
| Axle | FUWA/BPW/ZY or other Brands |
| Suspension | Heavy duty mechanical suspension with springs/Air suspension/Bogie suspension |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks |
| Electric system | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |

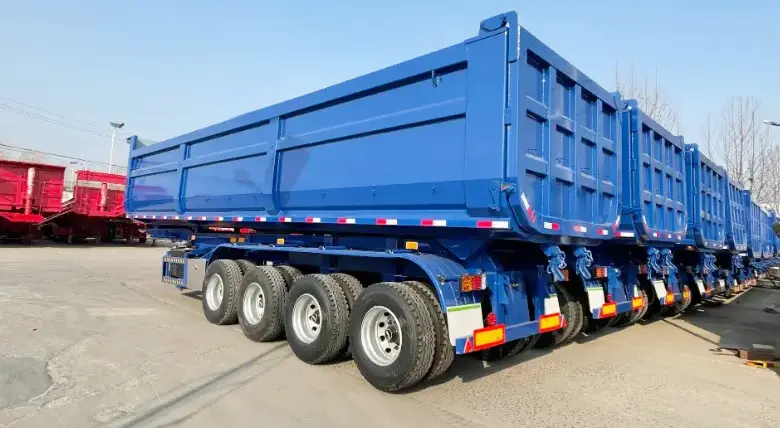

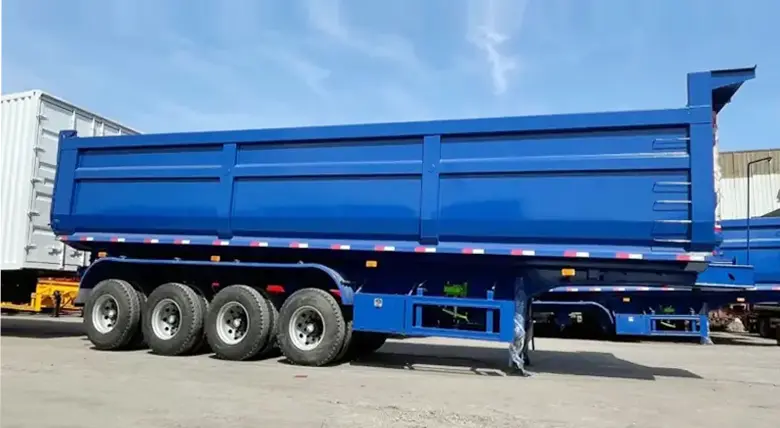

Products real shot
Product Video
