Trailer Size:12500*2500*1500
Color:Customizable
Introduction
| HOWO 45CBM STEEL DUMP TIPPING SEMI TRAILER | ||
| Dimensions | Overall Dimensions (mm) | L×W×H:11,538×2,500×3,700 |
| (the height will be confirmed by the specification of tractor) | ||
| Max. Payload (kg) | 30,000 | |
| Fabric & Configuration | Main beam | Flange 10mm/10m,Web 5mm, |
| Floor | bottom plate, 6mm side plate 3mm | |
| Painting | Primer and topcoat | |
| Tire | Type: 12R22.5, equip 17pcs per chassis | |
| Rim | Type: 9.0*22.5, equip17pcs per chassis | |
| Axle | Heavy Duty RHINOX13T*4sets | |
| Locks | None | |
| King pin | JOST 50# | |
| Suspension | Four axle Mechanical suspension for heavy load | |
| Leaf spring | 8pcs, 90*13mm, | |
| Landing gear | 30 Ton | |
| Brake system | Dual air brake system; No ABS | |
| ABS | No | |
| Electric system | 24V, LED lights. | |
| Tool box | One | |
| Spare tire carrier | Two | |
| Oil Tank | None | |
| Color | Choose | |

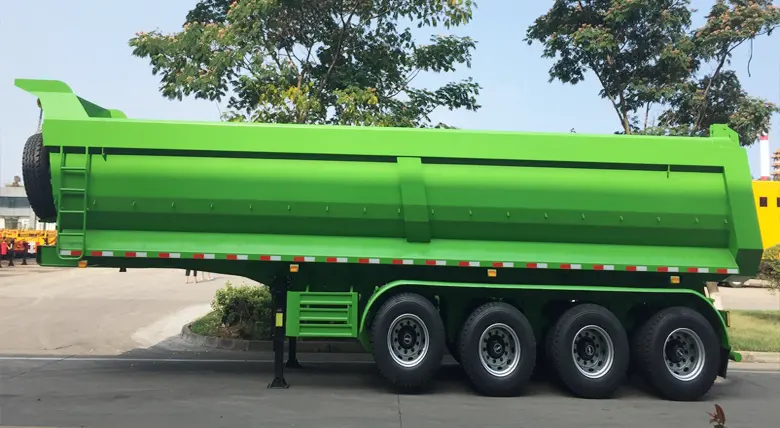

Products real shot
