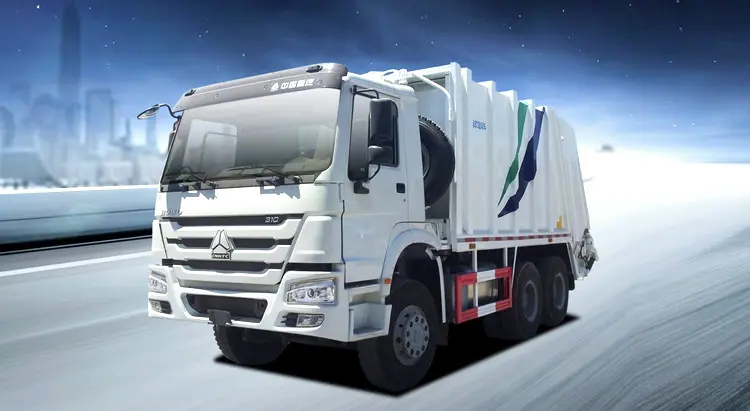

Sinotruk Howo Garbage Truck - Special Trucks

Introduction

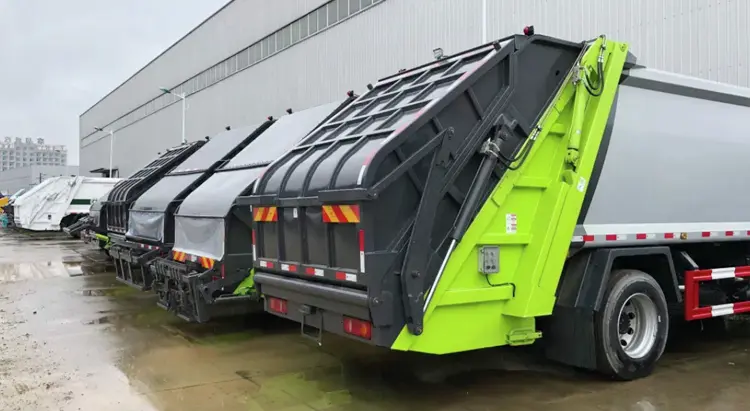

The Sinotruk Howo garbage truck is equipped with an efficient compression system that compresses the waste during loading, maximizing the amount of waste that can be loaded. In addition, the Sinotruk Howo garbage truck‘s body design is optimized for good sealing and durability, ensuring that there is no leakage during transportation and keeping the urban environment tidy.

Whether on city streets or in rural communities, the Sinotruk Howo garbage truck is ideal for all types of waste disposal. Sinotruk Howo 7 garbage truck reliable performance and economical operating costs make it the first choice for many sanitation companies, helping to clean and beautify the urban environment.

Sinotruk Howo garbage truck Specifications

Sinotruk Howo Garbage Truck
General	Vehicle Brand	POWERSTAR
	Chassis Brand	SINOTRUK
	Overall Dimension	10070 * 2500 * 3480 mm
	GVW / Kerb Weight	25,000kg / 13,680kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	SINOTRUK
	Power	300 HP (221KW)
	Displacement	9726 ml
	Emission Standard	Euro 2or 3
Chassis	Drive Type	6X4, (left hand drive or Right hand drive)
	Transmission	9 speed levers with 1 reverse
	Wheelbase/No. of axle	4350+1300 mm / 3
	Tire Specification	10.00-20
	Tire Number	10 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Body Capacity	20 CBM
	Fill Hopper Capacity	2.3 m3
	Sewager Tank volume	200 L
	Body Material	Weather resisting steel
	Filling work cycle time	20~25 s
	Filling lift time	6~9 s
	Filling lift capacity	8 Tons
	Discharge time	18~22 s
	Max compression force	12 Tons
	Discharge model	Horizontal Ejection
	Control	Electrically Hydraulic control Manual Hydraulic control
	Emergency Stop Button	Hopper Both Sides
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional	Backup alarm can be equipped. Camera can be equipped. ** Operation language can be English or Appointed language.

Field application

HOWO Engineering Expert

The diverse range of chassis options can accommodate a variety of vehicle modification needs, while the multiple powertrain choices are applicable to diverse specialized vehicle use cases. Our in-house modification company and world-class modification companies are available to serve your customization needs.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.

MC Series Engine

Safe Driving Cabin

Air Suspension Seat
