Sinotruk Howo Mining Truck - Special Trucks

Introduction

Lifting Heavy Loads with Ease

Whether transporting coal, gold, or nickel ores, or handling various minerals like crushed stone, metallic ores, and gravel, the Sinotruk Howo Mining Truck can easily cope with them all. Boasting a robust payload capacity of 30T-135T, as well as excellent safety, high attendance rate and high reliability, Sinotruk Howo Mining Truck ensures your ore transportation efficient and worry-free.

Powerful Performance

Equipped with high-power engine, providing strong power output, adapting to the operation needs under complex working conditions. Optimized engine design improves fuel economy and reduces operating costs.

Model

ZZ5707V3840CJ

Drive Type

6×4

Engine

D12.42 , 420HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 11.596L

Cabin

HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)

Transmission

HW19710(10 forwards & 2 reverses)

Front Axle

1×HF12 ( 12 Tons)

Driving Axle

AC26, 26Tons

Steering

ZF8118 hydraulic steering with power assistance.

Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating
with air assistance

Rim/ Tire

14.00-25,14.00R25,Radial tire

Wheel base

3800+1500(mm)

Overall dimension

8700×3300×3670(mm)

Cargo body

5800×3100×1600(mm),Bottom:16mm, Side:12mm

The curb weight

23000(Kg)

Gross weight

70000 kg

Max. speed

50km/h

Color

White, red, green, golden and so on.

Field application

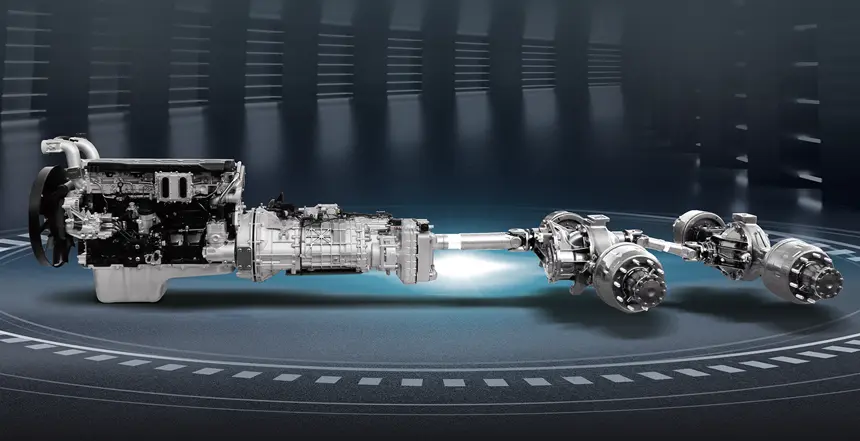

HOWO Engineering Expert

The diverse range of chassis options can accommodate a variety of vehicle modification needs, while the multiple powertrain choices are applicable to diverse specialized vehicle use cases. Our in-house modification company and world-class modification companies are available to serve your customization needs.

All-Around Vision, Everything in Sight

Featuring wide-view design, four-way monitoring system (optional), and observation window (optional), the driver is accessible to comprehensive visual information about the surrounding environment and traffic dynamics of the vehicle, thus making accurate assessments, and safely responding to various situations.

MC Series Engine

Safe Driving Cabin

Air Suspension Seat
