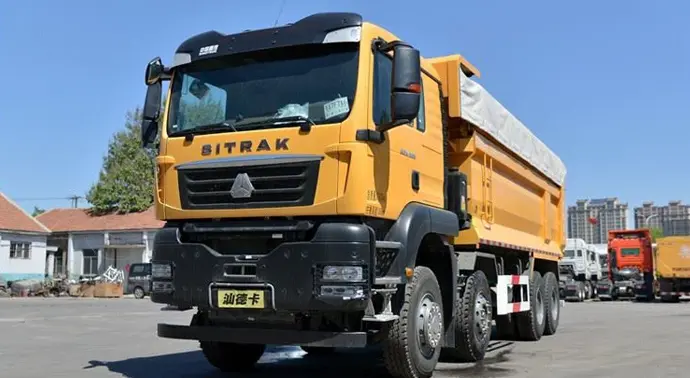

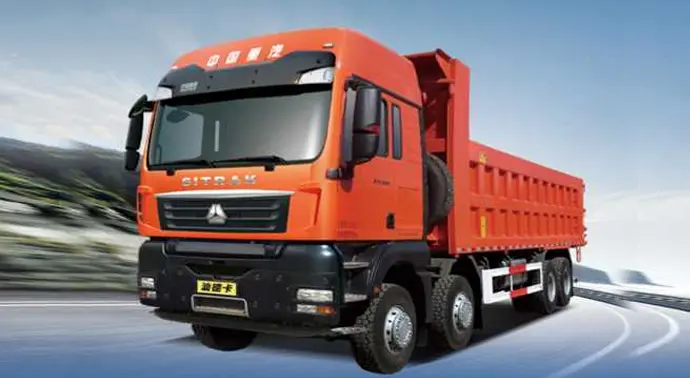

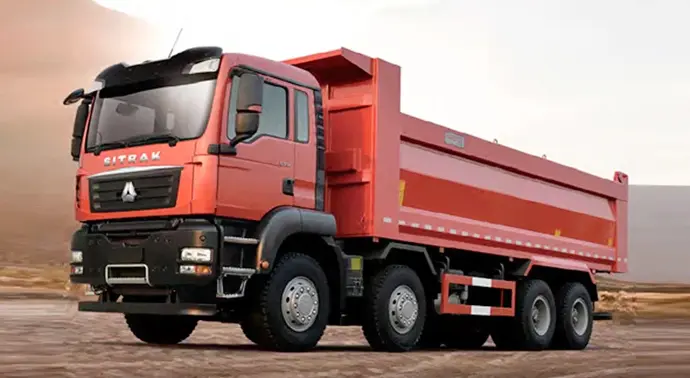

SITRAK 8X4 Dump Truck Application:
Purpose: Ideal for demanding urban environments and construction sites ;
Fuel Tank: 400L capacity for extended operational hours ;
Tyres: 13R22.5 block pattern tyres for stability on diverse terrains ;
Bumper: High full-metal bumper for added protection ;
ABS System: Advanced ABS (4S/4M) system for enhanced safety ;
Applications: Suitable for city dumping, large-scale material transport, and construction projects .
The Sitrak ZZ2316N256HF1 combines power, efficiency, and safety features, making it a reliable choice for various heavy-duty tasks in urban and construction settings.
|
Main Technology Parameter |
|
|
Model name |
SITRAK C7H DUMP TRUCK |
|
Model |
ZZ2316N256HF1 |
|
Driving type |
Left hand drive |
|
Traction type |
8×4 |
|
Color |
optional |
|
Weights |
|
|
Gross Vehicle Weight(kg) |
Approx.15500 |
|
Gross Combination Weight (kg) |
Approx.60000 |
|
Dimensions |
|
|
Wheelbase(mm) |
3775+1400 |
|
Overall dimension(mm) |
Approx.1800+2500+1400 |
|
Engine |
|
|
Engine model |
MC13.54-61 |
|
Emission standard |
Euro 5 |
|
Engine type |
4 stroke water-cooled, inter-cooling |
|
No. of cylinders |
straight-6 cylinders |
|
Displacement(L) |
12.42 / Diesel |
|
Max. output (kw) |
400 |
|
Fuel Tanker（L） |
800 aluminum fuel tank |
|
Drive Line |
|
|
Gearbox |
HW25712XSJHW50 flange power take-off |
|
12 speeds, 12 forwards, 2 reverse gear, AMT |
|
|
Steering |
Power steering |
|
Brake |
Air brake, engine exhaust brake |
|
Cab |
|
|
Cabin |
length flat top cab, double sleeper, with A/C; Can be tipped forwardly, with inner A/C and one sleeper bed |
|
Standard configuration |
Air container |
|
Axle |
|
|
Front axle |
6500/7000kg |
|
Rear axle |
MCP23ZG |
|
Tire specification |
|
|
Tire specification |
12.00R22.5 standard tire,12 tires+1 spare part |
|
Parameter |
|
|
Economic speed/maximum speed (km/h) |
40～55/75 |
|
Max. Gradeability |
35(%) |
|
Rear overhang(mm) |
1450 |
|
Suspension |
Leaf spring, 11/11/12 |
|
Color |
Customized |
|
Body parameters |
|
|
Body dimension(mm) |
8800x2380x1580 |
|
Body volume(m3) |
33.1 |
|
Material |
Carbon steel plates |
|
Lifting method |
Front hydraulic lifting system |
