Sinotruk Howo TX 420 8x4 Mixer Truck - Mixer Truck

Introduction

The Sinotruk Howo TX 420 8×4 Mixer Truck features a scientifically designed mixing drum, using wear-resistant steel and double-helix blade technology to ensure uniform concrete mixing and maximize unloading efficiency. Its reinforced chassis structure provides a high load capacity of 12-14 cubic meters, and its precise hydraulic control significantly improves construction progress and quality.

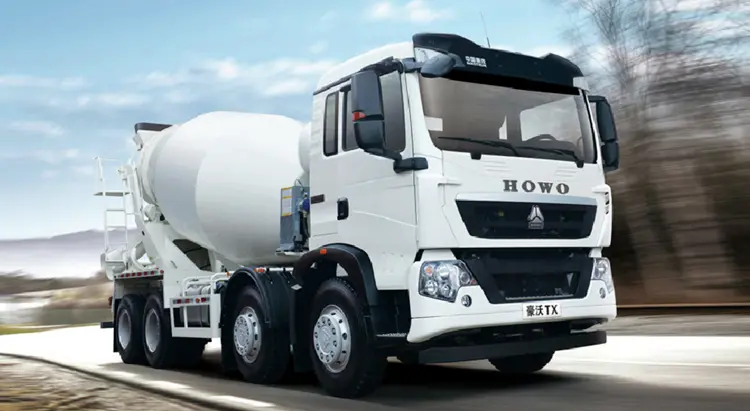

Sinotruk Howo TX 420 8×4 Mixer Truck
Product Name	Sinotruck TRUCK	Brand	Sinotruck
Origin	China	Model	Sinotruk TX mixer truck
Year	2025	Type	LORRY
Total Weight	31000(kg)	Curb Weight	13850(kg)
Seats	2	Max speed	82(km/h)
Type of Fuel	Diesel	Length	10180mm
Weight	2550mm	Height	3990mm
Overall Dimensions(LWH)	1018025503990mm	Howo Concrete Mixer Truck	Howo Concrete Mixer Truck
ENGINE PARAMETER
Engine Model	WP8.350E61	Engine Power	257/349kw
Displacement	7800(ml)	Emission Standard	EURO 6
CHASSIS PARAMETERS
Number of Spring Pieces	11/11/12,11/11/10,3/3/5,3/3/4 2/2/5,2/2/4,3/3/-,2/2/-,11/11/- 5/5/5,5/5/-,4/4/5,7/7/10	Number of Tire	10
Tire Type	12R22.5 18PR,11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,315/80R22.5 18PR,12.00R20 18PR,11R22.5 18PR	Approach/Depature Angle	19/18(°)
F/R Overhang	1430/2550(mm)	Front Track	2061/2061(mm)
Rear Track	1870/1870(mm)	Number of Axis	3
Axial load	6500/7000/17500	Wheelbase	1800+3800+1350(mm)

Field application

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

High Comfort

Featuring an adjustable air suspension seat, the HOWO-TX offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives. The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.

MC Series Engine – SINOTRUK’s Exclusive High-End Power

Transmission – Always in the Right Gear

Axles – Carry More, Cost Less
