Superior Comfort
The HOWO-NX series cabin is a collaborative development between Sinotruk and a renowned Italian design company, featuring an elegant appearance, high safety standards, and outstanding comfort.
Introduction

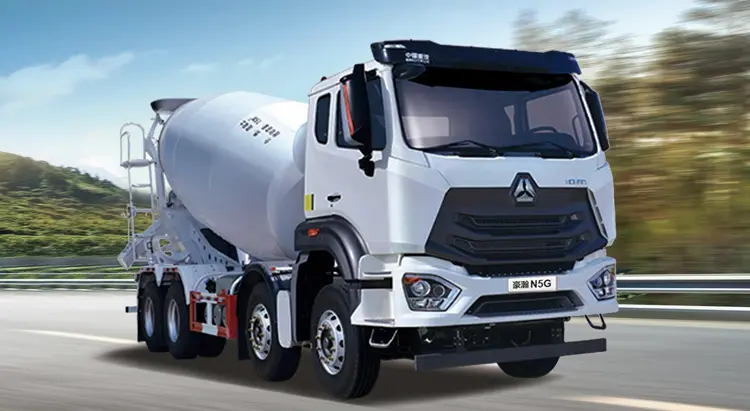

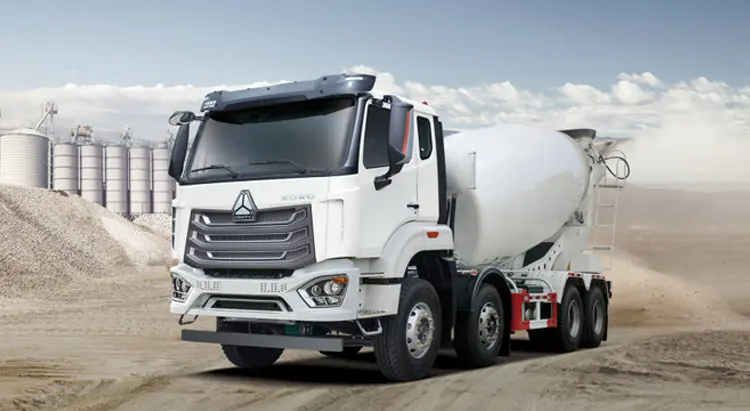

The mixing drum of the Sinotruk Howo NX 8×4 Mixer Truck is made of high-strength, wear-resistant steel, with a volume range of 9-12 cubic meters, and a unique spiral blade design that ensures the homogeneity of the concrete. The modular design of the chassis and the optimized wheelbase of 1950+3450+1350mm make the Sinotruk Howo NX 8×4 Mixer Truck a well-balanced mixer truck in terms of throughput and payload. The Intelligent Control System, equipped with functions such as material level monitoring and speed memory, significantly improves the Sinotruk Howo NX 8×4 Mixer Truck’s operational precision.
| Model | Sinotruk howo NX 8×4 mixer truck | |
| Drive Mode | 6×4,8×4 | |
| Cab | Hf/L Single Bunk Air bags shock absorber. Remote control lock | |
| Engine | Model | WD615 |
| Displacement (L) | 9.726 | |
| Power (Ps) | 266-371 | |
| Type | water cooling. four stroke, turbo charging and intercooling, Mechanical fuel injection pump . | |
| water cooling, four-stroke, turbo charging and intercooling. BOSCH electrically controlled high-pressure common rail | ||
| Emission Standard | Euro II EuroV /Euro III EuroV | |
| Transmission | HW15710, HW19710, HW19712, HW19709XST, HW16709XST | |
| Axle | Front Axle (T) | VGD95 |
| Rear Axle (T) | MCX16/MCP16 | |
| Suspension | Front | Reinforced leaf spring |
| Rear | Reinforced leaf spring | |
| Frame | Double frame | |
| Fuel Tank (L) | 300 / 400 | |
| Tyre | 12R22.5, 315/80R22.5 optional | |
Field application
Safe Driving Cabin
Air Suspension Seat
Four-Point Air Suspension
