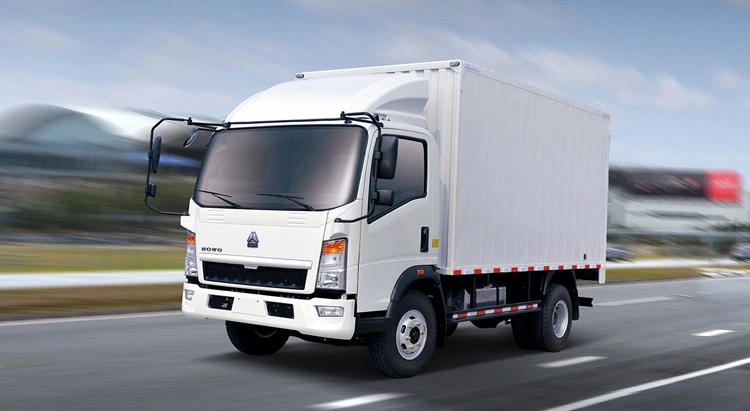

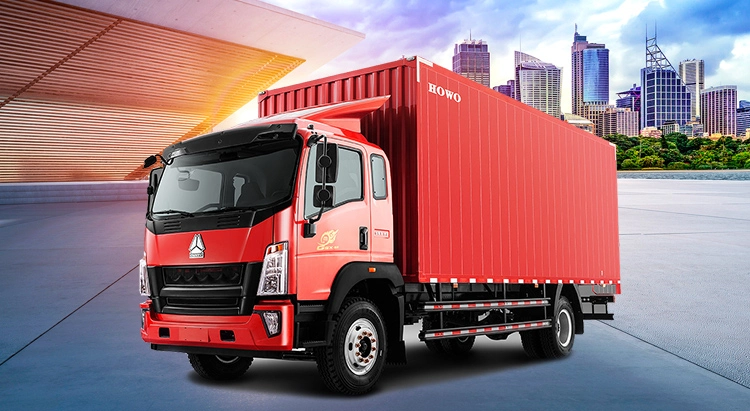

Sinotruk Howo Light Box Truck - Light Truck

Introduction

Sinotruk Howo Light Box Truck can be converted into a refrigerated truck with polyurethane insulation layer and refrigeration unit in the cargo box, and the temperature control range is from -18℃ to +12℃, which can meet the demand of fresh food and medicine cold chain.

Urban and rural goods distribution
Suitable for the transportation of agricultural products, building materials and hardware in farmers’ markets, etc. High ground clearance (220mm) enhances the passability of unpaved roads.

Multi-functional Conversion Platform
Sinotruk Howo Light Box Truck chassis is reserved with standardized interfaces, which can be converted into pallet trucks, closed vans or engineering emergency vehicles to meet the needs of diversified industries1718.

Sinotruk Howo Light Box Truck Parameters

Model	ZZ1107D3815C1	ZZ1107G421CD1		ZZ1107G451CD1
Engine	116HP-154HP
Transmission	WLY6T46	WLT6T51		WLT6T53
Front Axle	2.4	2.7		3.2
Rear Axles	3.5	4.2		7.2
Chassis	Frame: U-profile parallel ladder type with section , all cold riveted cross members and reinforced sub frame
Brakes	Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake
Wheel & Types	7.00R16		7.50R16		8.25R20
Driver’s cab	2080 Single row/ extend cab, all steel forward control, 55^o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. Option: air conditioner
Electrics	Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Wheelbase	3800mm		4500mm		4500mm
Cargo body size	4850x2150x2000mm		5200x2250x2000mm		5750x2300x2000mm

Field application

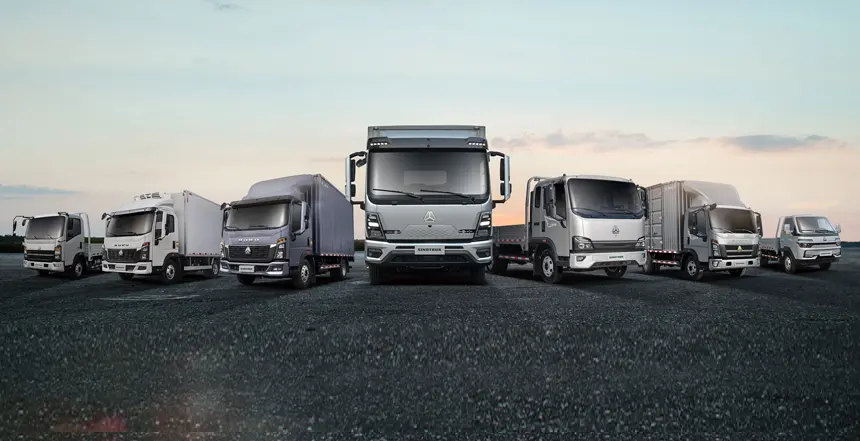

Versatile and Proven Powertrain

The HOWO light truck is equipped with a range of well-established engines, covering displacements from 2L to 4.6L, power outputs from 94 to 217 HP, and torque from 260 to 850 Nm. The transmission options utilize proven and reliable technology. AMT addresses the needs of both standard and heavy-duty logistics, improving driving comfort.

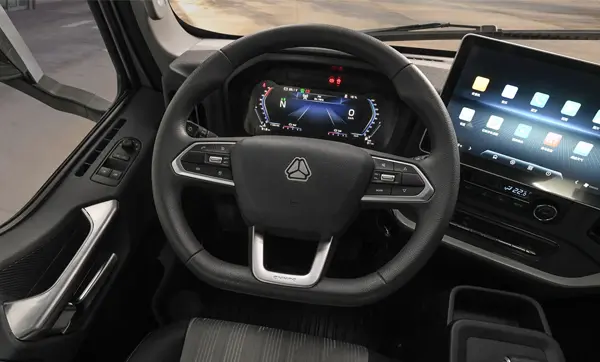

Comfort and Smart Features

The cabin offers ample space, and the ergonomically designed seats provide sufficient support, creating a comfortable driving environment for the driver and reducing fatigue during long drives.

Easy Operation

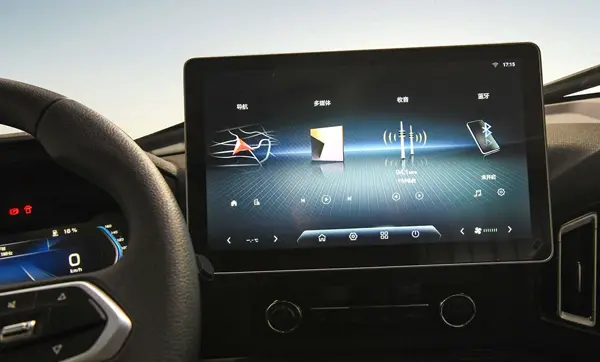

Floating Smart Display

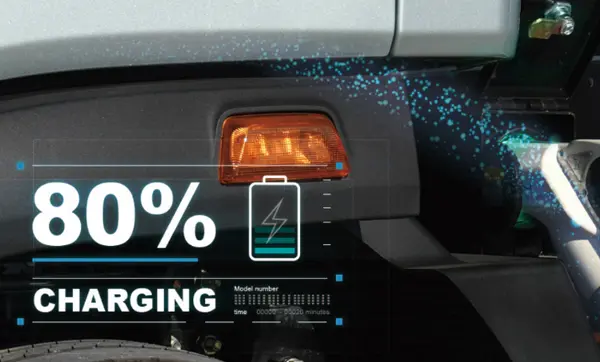

Fast and Safe Charging
