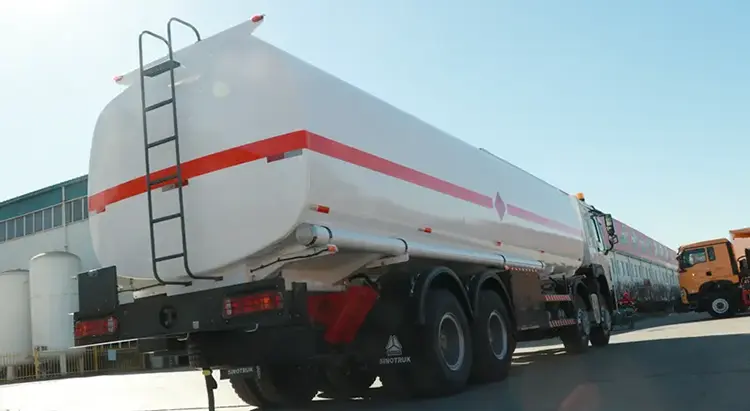

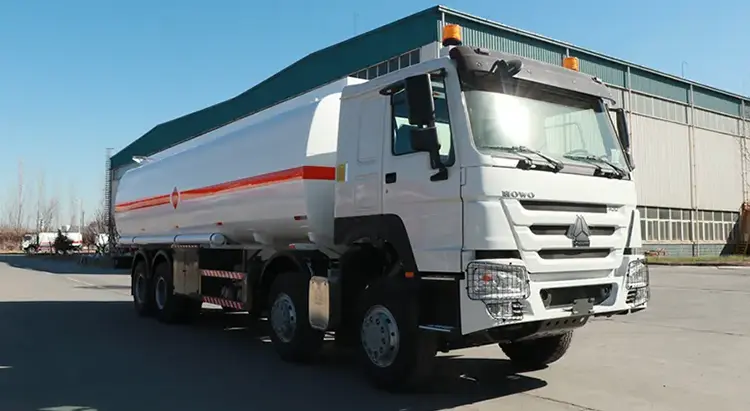

Sinotruk Howo A7 420 8x4 Oil Tanker Truck - Tanker Truck

Introduction

Sinotruk Howo have taken a place in the export market with their excellent performance and high quality configuration. For example, Sinotruk Howo A7 420 8×4 Oil Tanker Truck is powered by a 420 HP engine of the MC series of SINOTRUK’s German MAN technology, matched with a nine-speed gearbox, which has a strong load carrying capacity and adaptability to a variety of road conditions.
In addition,Sinotruk Howo A7 420 8×4 Oil Tanker Truck is equipped with high-quality components such as the MAN frame and 295/80R22.5 18PR steel wire tires, which ensures the vehicle’s stability and durability under various working conditions.

Truck Model		Sinotruk Howo A7 420 8×4 Oil Tanker Truck
Dimension (Lx W xH)(unloaded)(mm)		11990x2400x3115
Tank volume		30 to 35m3 with 2 compartments
Overhang(front/rear) (mm)		1500/2740,
Wheel base (mm)		1800+4600+1350
Max speed(km/h)		90
Curb weight(kg)		14500
Loading Weight(kg)		35000
Engine (Steyr technology, made in China)	Model	WD615. water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
	Fuel type	Diesel
	Horse Power, max(kw/rpm)	310HP 340HP 375HP 400HP
	Emission	EURO2
Fuel tanker capacity(L)		300L with locking fuel cap
Transmission	Model	HW13710CL
power take off		HW70
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	ZF8098 hydraulic steering with power assistance
Front axle	HF7
Rear axle	ST16
Tyre	295/80R22.5 13 pieces(1 spare)
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HW76 cab(one bunk, with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.

Field application

Excellent Ergonomic Design

All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.

High Comfort

Featuring an adjustable air suspension seat, the HOWO offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives. The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.

MC Series Engine – SINOTRUK’s Exclusive High-End Power

Transmission – Always in the Right Gear

Axles – Carry More, Cost Less
