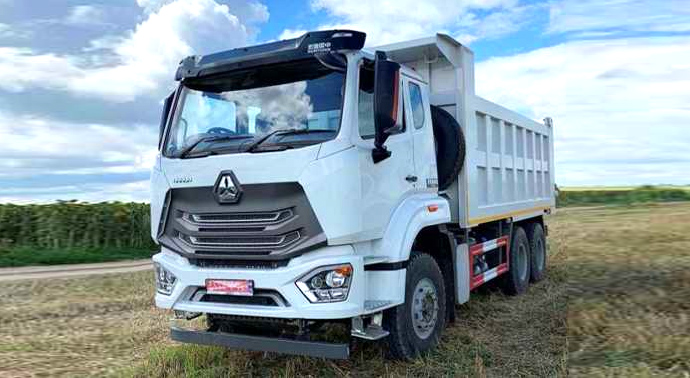

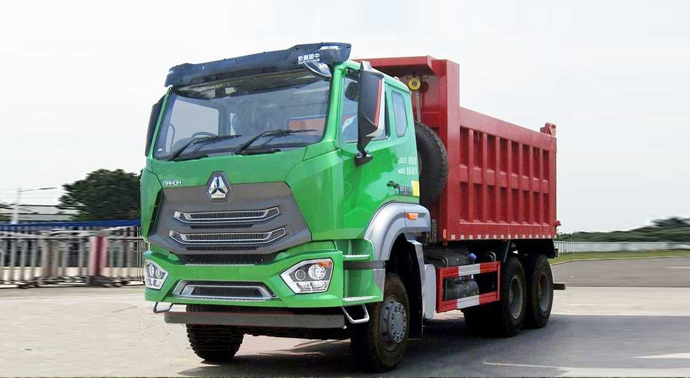

Howo NX 6X4 Dump Truck- SINOTRUK

Introduction

Howo NX 6X4 Dump Truck is developed and manufactured jointly by Sinotruk in virtue of more than 40 years experience of Sinotruk in developing heavy duty trucks. This special purpose truck comes with a powerful engine which is available in 266-371hp. It also employs reinforced frame with 16t drive axle, thus dramatically improving loading capacity.

Howo NX 6X4 Dump Truck (18~24m³)
Weight Parameter	Curb mass(kg)	12370
Weight Parameter	Full loaded mass(kg)	25000
Dimension Parameter	External Size(LWH) mm	845024963170
Dimension Parameter	Wheel Base(mm)	3820+1350
Performance Parameter	Max.Speed(km/h)	90
	Economic Speed(km/h)	65~80
	Max.Grade Ability(%)	34
Engine	Horsepower	371
Engine	Type	water-cooled, turbo-charged & inter-cooled, direct injection
Rear Axle	Type	HC16
Rear Axle	Rear Axle Ratio	4.8
Carriage	Carriage Internal Dimensions(mm)	5200~700023001500
	Cubage(m³)	18~24
	Steel thickness of Carriage(mm)	Floor:8mm/ Side:4mm （Mn16）
Fuel Tank (L)		300
Tire		12.00R20/295 /80R22.5

Field application

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
