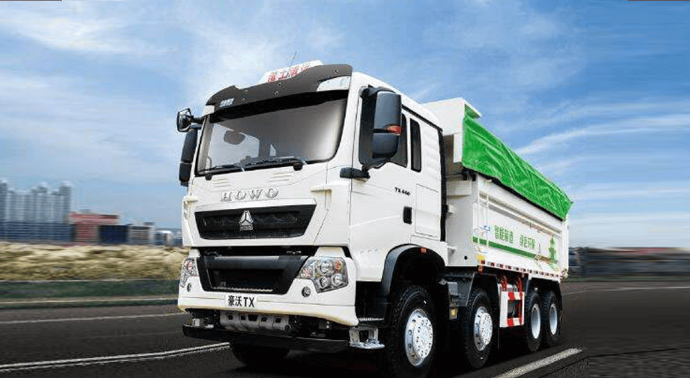

Howo TX 8X4 Dump Truck

ModelZZ3317V286GF1B

Engine257/2100

TransmissionHW19712L+HW50

CabinC7H-G, 2-berths

Frame section8+4/280

Message

Introduction

Howo TX dump truck has six features: strong power, precise fuel saving, efficient attendance, safe and reliable, comfortable ride, and wisdom to enjoy worry-free.

As a best-selling product in the urban construction sludge market, HOWO TX dump truck always adheres to the customer-centered approach and continues to create value for customers.

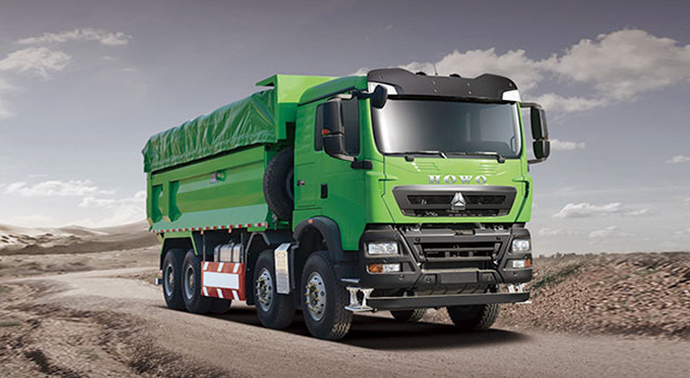

Howo TX 8X4 Dump Truck
Vehicle Model	ZZ3317V286GF1B
Engines	Model	WP8.350E62
	Net power (kw) /speed (r/min)	257/2100
	Maximum torque (Nm) /speed (r/min)	1400/1200-1600

Transmission	HW19712L transmission + HW50 direct coupled extractor
Clutches（mm）
Rear axle model	MCX16ZG Self-aligning arm double rear axle (drum)
Rear axle speed ratio	4.8
Oil tank（L）	400
Frame section（mm）	8+4/280
Suspension (front and rear springs)	Front and Rear Standard Multi-Leaf Springs (7/7/10)
Tires	11.00R20 (Mixed Patterns)

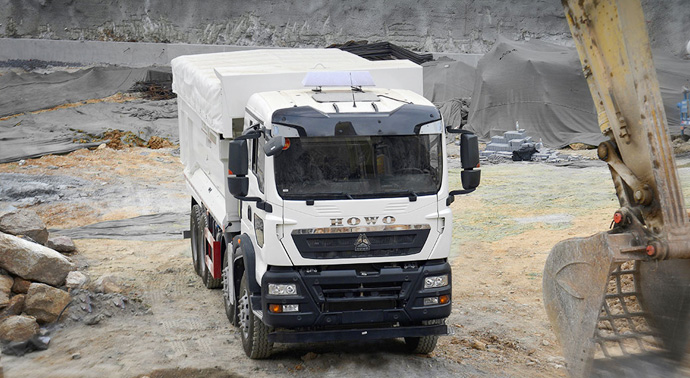

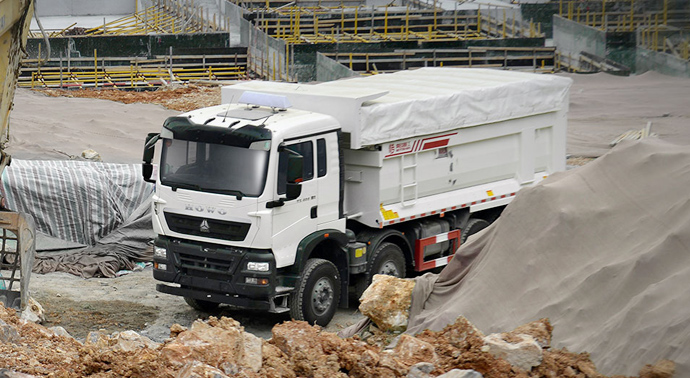

Field application

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
