Introduction
Howo 90 Miminig King 90t dump truck is mainly used for transporting resources such as coal, sand and gravel, which improves the mining efficiency and production, reduces the transportation cost, and helps to realize the effective use of resources. The shape is bigger than normal dump trucks, and the load capacity is up to 90 tons, which has a strong load capacity.
Howo 90 Miminig King 90t dump truck specification only for your reference, we will recommend other model SINOTRUK mining dump truck basic your request.
90 Tons SINOTRUK HOWO mining dump truck cargo box is all-welded structure, bucket-type floor is warped at the back with anti-swing block to prevent bumping off the paint, and the bottom plate is welded by high-strength, high-hardness, impact-resistant high-quality steel plate with high bearing capacity and not easy to break or deform, which can be adapted to the transportation under various working conditions.
90 Tons SINOTRUK HOWO mining dump truck uses engine with advanced fuel system, which can improve the utilization rate of fuel, and the large horsepower of 430 makes the power stronger and ensures that it is easy and powerful even when it is fully loaded and going up the slope, which can be adapted to a variety of working conditions, and it also reduces the fuel consumption and prolongs the service life.
| Sinotruk Howo 90 Miminig King 90t |
|
| Chassis Model | ZZ5707V3640CJ(Left/ Right Hand Driving Type Optional) |
| Engine | Model: WP12.430E201, Euro 2, 430HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 11.596 L |
| Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW21712, 12 forward and 2 reverse, with Power Take-Off (PTO) |
| Front Axles | 25000kg with drum brake system |
| Rear Axles | 2X45000kg, double stage reduction (central+ hub), cast axle housing, ratio: 8.51 |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | Z F brand power steering, model ZF8118 , hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 14.00-25 with one spare tyre |
| Fuel Tank Volume (L) | 500 |
| Dead Weight | 22400 |
| Gross Vehicle Weight (kg) | 70000 |
| Rated Loading Weight (kg) | 55800 |
| Overall Dimension (LxWxH) (mm) |
8400x3300x4350 |
| Wheelbase (mm) | 3600+1500 |
| Cargo Body Size (LxWxH) (mm) | 5600x3100x1700 |
| Remark (Engine Power Option) | 371HP; 430HP |

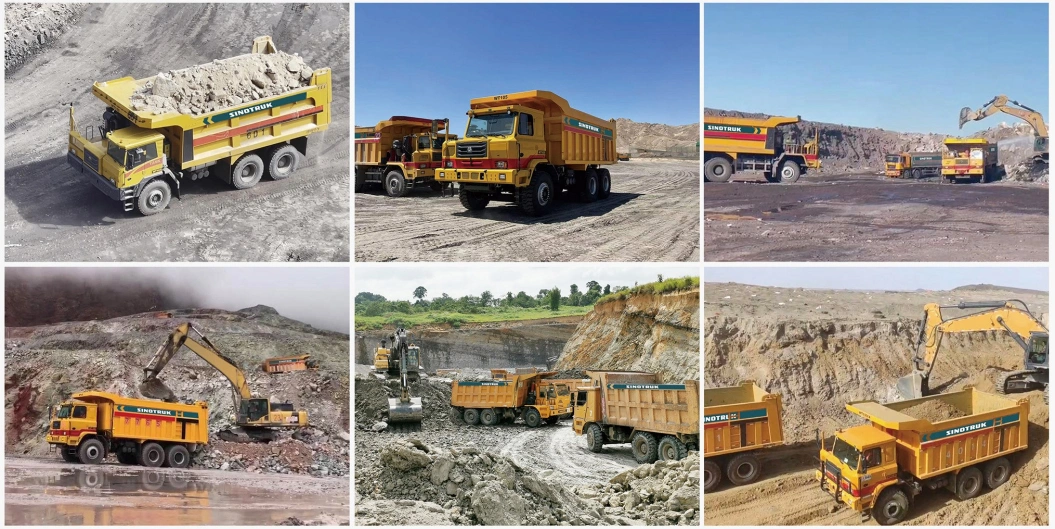

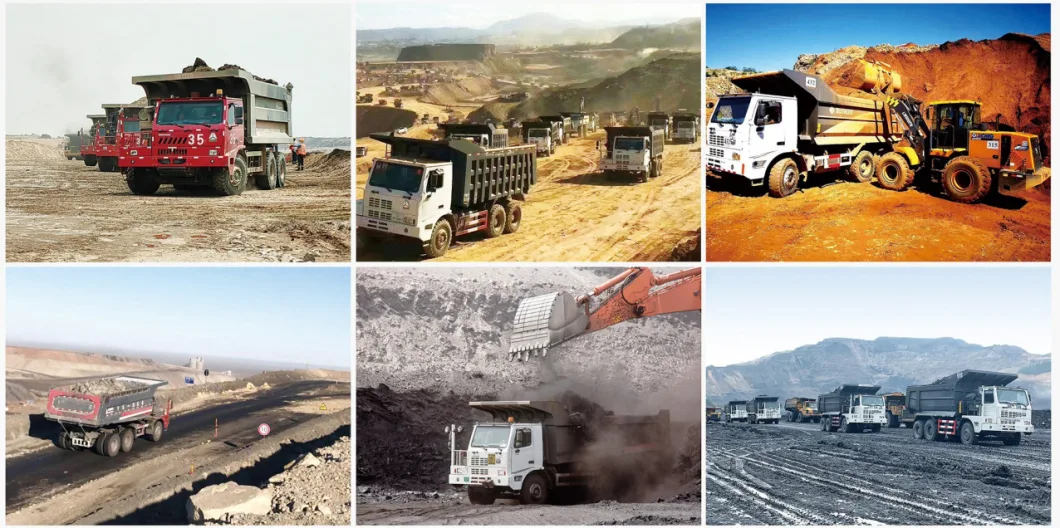

Field application
