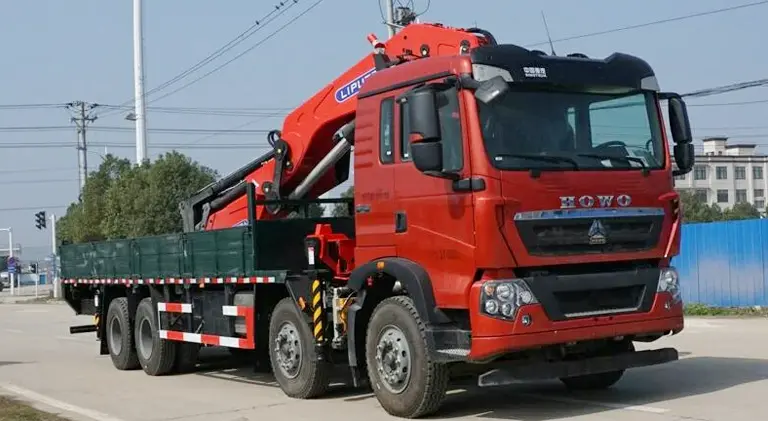

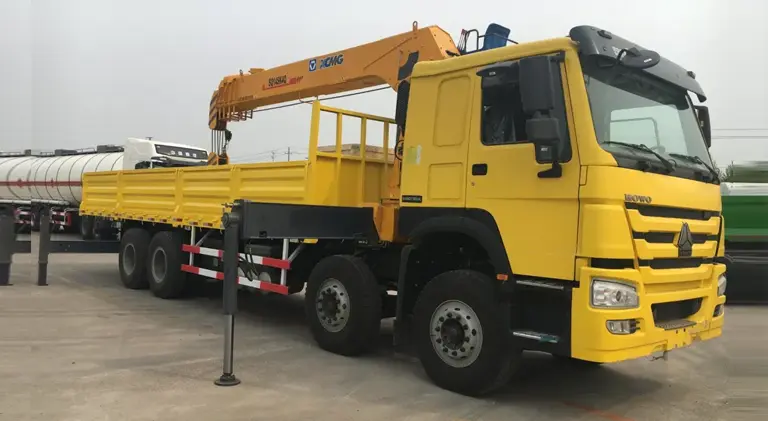

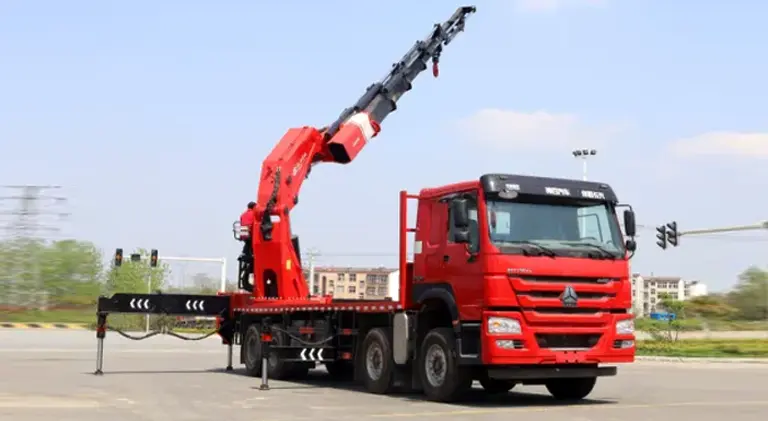

Howo 8X4 Cargo Truck With Crane 10 ton is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
|
Truck Brand |
SINOTRUK-HOWO ( LHD) |
||||
|
Truck Model |
ZZ1317N4667w |
||||
|
Dimension(Lx W x H)(unloaded)(mm) |
11182*2500*3750 |
||||
|
Cargo body size (L*W*H, mm) |
8500*2500*600 Bottom:3mm, Side: 1.5mm |
||||
|
Crane Model |
SQ14SK3Q |
||||
|
Max Lifting capacity(kg) |
14000 |
||||
|
Max Lifting Moment(T.M) |
30 |
||||
|
Recommend Power(kw) |
30 |
||||
|
Crane Weight(kg) |
4200 |
||||
|
Installation space(mm) |
1300 |
||||
|
Rotation Angle |
All Rotation |
||||
|
Max Oil Flow of Hydraulic System |
63 L/min |
||||
|
Max Pressure of Hydraulic System |
26 Mpa |
||||
|
Crane Type |
telescopic boom |
||||
|
Approaching angle/Departure angle(°) |
16/15 |
||||
|
Overhang(front/rear) (mm) |
1500/2707 1540/2530 |
||||
|
Wheel base (mm) |
1800+4600+1350 |
||||
|
Max speed(km/h) |
95 |
||||
|
Loading Weight(kg) |
31000 |
||||
|
Engine (Steyr technology, made in China) |
Model |
WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling , directly injection |
|||
|
Fuel type |
Diesel |
||||
|
Horse Power, max(kw/rpm) |
371HP |
||||
|
Emission |
EURO II |
||||
|
Fuel tanker capacity (L) |
300 |
||||
|
Transmission |
Model |
HW19710,10 forwards and 2 reverse |
|||
|
PTO |
Model |
50# |
|||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
|
Auxiliary brake |
Engine exhaust brake |
||||
|
Steering system |
Model |
8098 hydraulic steering with power assistance |
|||
|
Front axle |
HF9 |
||||
|
Rear axle |
HC16 |
||||
|
Color |
Optional |
||||
|
Tyre |
12.00R20, steel wire tire |
||||
|
Tyre quantity |
12pcs + 1 spare |
||||
|
Electrical system |
Battery |
2X12V/165Ah |
|||
|
Alternator |
28V-1500w |
||||
|
Starter |
7.5Kw/24V |
||||
