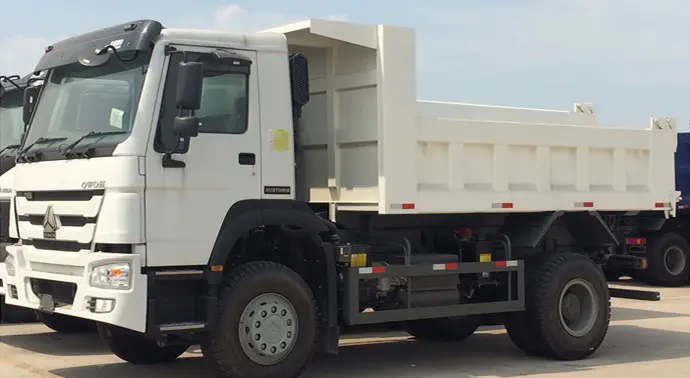

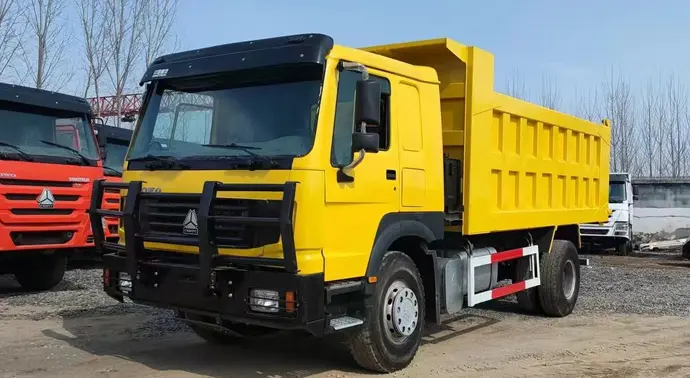

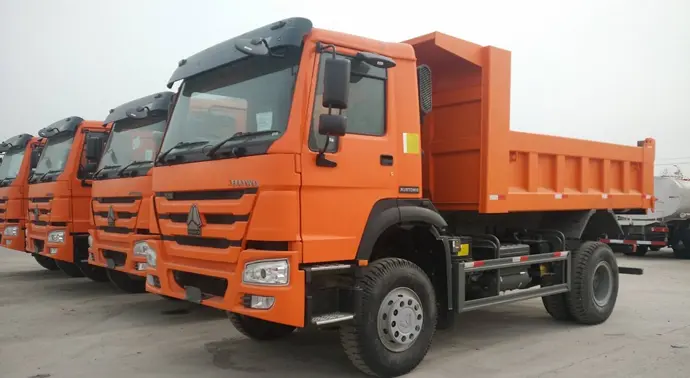

Howo 4X2 Dump Truck

Introduction

Sinotruk Howo 4X2 Dump Truck has its flexibility for short distance transport and suitable for narrow area. Best choice for small tonage and village construction purpose. Used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc. A dump truck is usually installed with a hydraulic motivated open-box bed hinged at the rear. The front of this open-box can be lifted up so that the materials are discharged on the ground behind the truck.

SINOTRUK HOWO 4X2 Dump Truck
Chassis Model	SINOTRUK HOWO ZZ3167M4611
Engine	WD615.87, 290hp
Drive Model	4X2
Fuel Type/Emission	Diesel , Euro II
Transmission	HW19710, 10 forward & 2 rear
Steering	ZF hydraulic steering with power assistance
Front axle	HF7/HF9,7tons/ 9 tons load capacity
Rear axle	ST16/HC16 ,16×2 tons load capacity
Cab	HW70 cab, With air conditioner
Rim/Tires	11.00R20 Radial Tire,7 pieces including 1 spare tyre
Fuel Tank	300L
Carriage dimension	(5000-5400)x2300x(1100-1400)mm, Floor 8mm, Side 6 mm

Field application

High Reliability

Introduce the original German MAN TG series vehicle technology, the same product design and the same production assembly technology, completely adopt the German standard in the production conformity management, testing & validation and the product release, and synchronize the parts purchasing system with MAN company, allof which are the strong guarantee of the vehicle high reliability.

Engine

DERIVING FROM MAN AND IMPROVED IN CHINA MC11 engine has a very wide area of low oil consumption and large torque, The minimum specific fuel consumption is only 186 g/kw / h; The internal mileage of the engine oil change can reach 80000 kilometers.Its B10 life could reach 1.5 million kilometers.
